The Gateway is made on one PCB, which is fitted to the aluminum housing. The housing is made of a thick, strong aluminum profile with two end plates also made from aluminum. The surface of the housing is finished by anodizing.
At the bottom of the housing there are slots through which DIN rail clamp or any other clamp can be mounted by t-nuts.

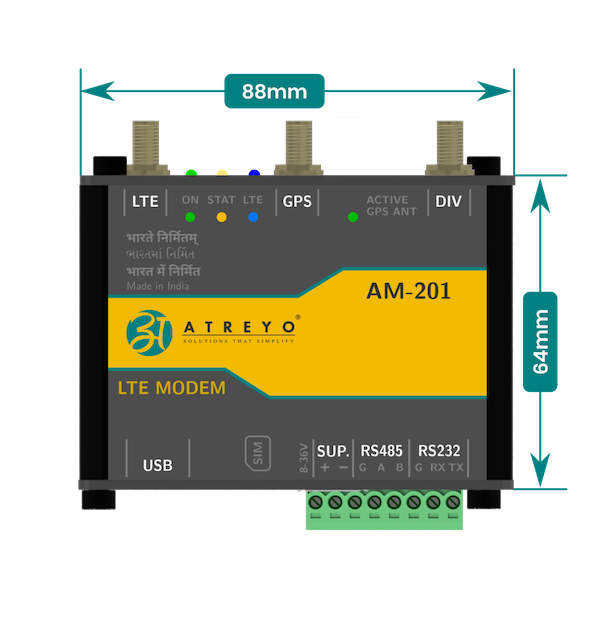

Front view dimensions

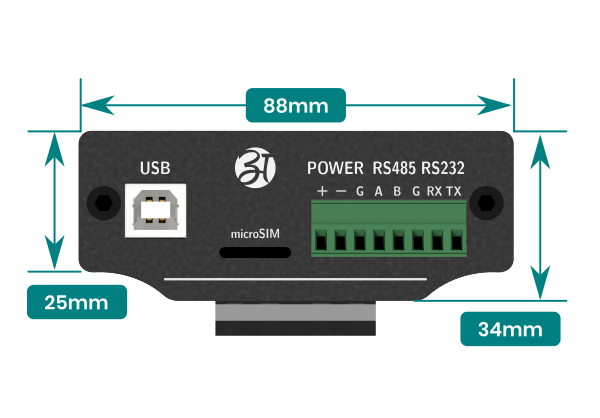

Side view dimensions
Interfaces

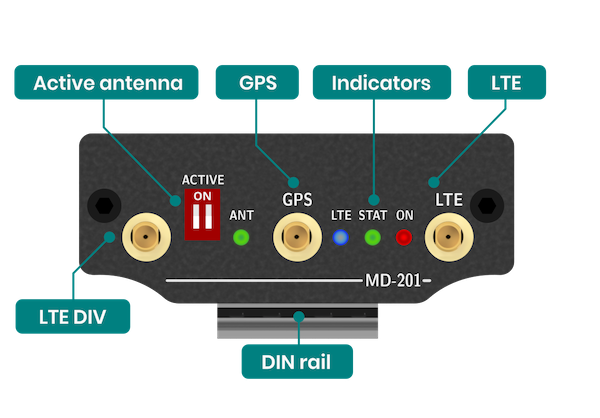

Top view connector and indicators
Not all models have all connectors. Models without GPS do not have the GPS antenna connector and DIP switch. Likewise, the DIV antenna is only on some models. Check in model selection specific model.

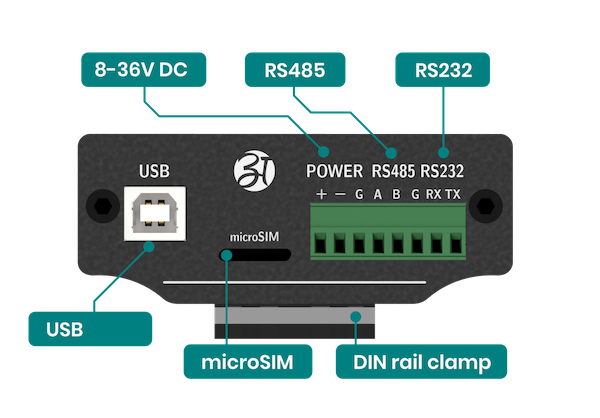

Bottom view connector
