The device is manufactured as a PCBA placed in an aluminum profile with DIN-Rail mount and connectors on its side plates.
The main PCB inside the profile has a MiniPCIe socket to mount the LTE modem.
This design has many advantages.
- The aluminum profile efficiently transfers heat from the electronics, keeping them cool even under heavy loads.
- The profile also protects the electronics from damage from impact, shock, and vibration.
- The PCB is easy to access for maintenance and repair purpose.
- The overall design is compact and lightweight, making it easy to install and deploy.
Mechanical Dimensions

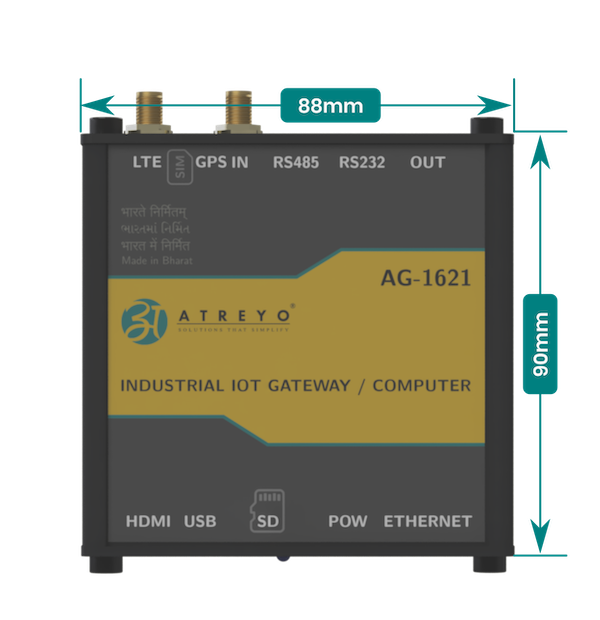

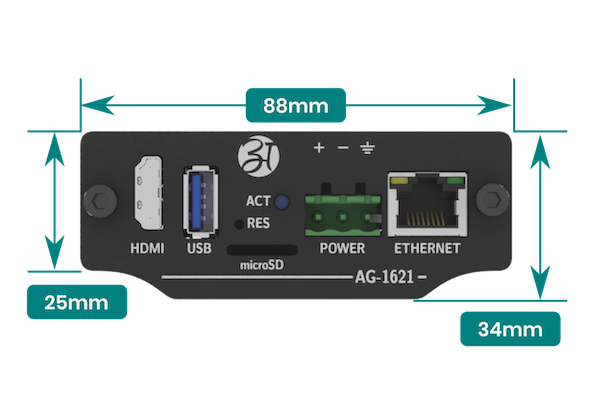

The device's compact body design makes it easier to fit even if less amount of space is available.
Connectors
Top view

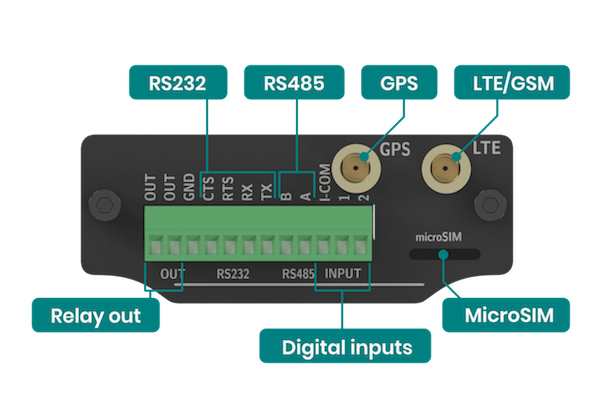

The AG-1621 has a pluggable connector on it's top side. connector can be used for RS232 and RS485 connection as well as inputs and output.
LTE and GPS antennas can be connected to female SMA antenna sockets and SIM card to be inserted in microSIM slot.
Bottom view

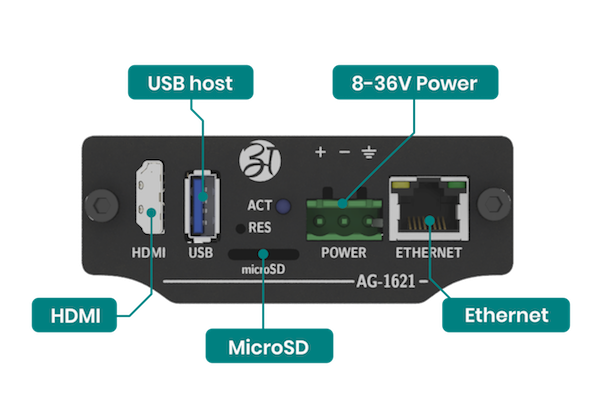

On the bottom side, it has a LAN socket with LED indicator, microSD card slot, USB type A host, HDMI output, and a 3-pin female connector as power socket.
